Handle Bar Risers for BMW R1200GS (2008-2012), R1200GS Adventure (2008-2013) & HP2


BMW R1200GS (2008-2012), R1200GS Adventure (2008-2013) & HP2 Bikes

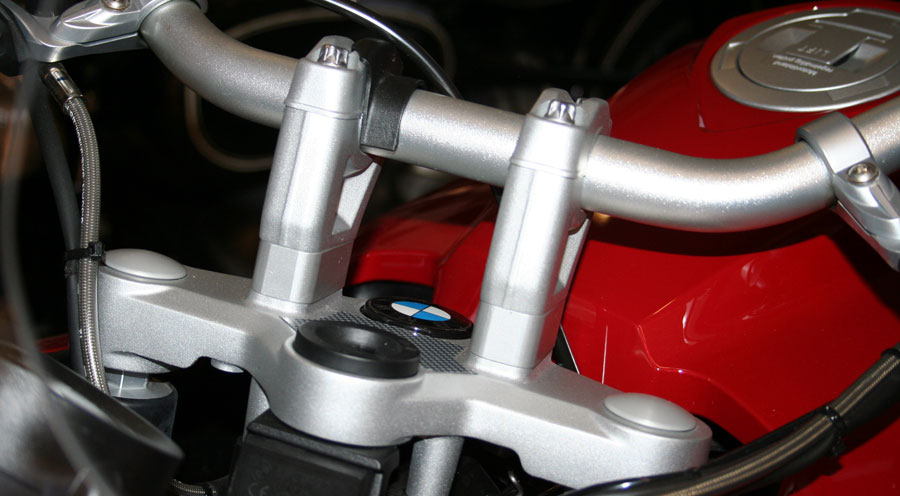

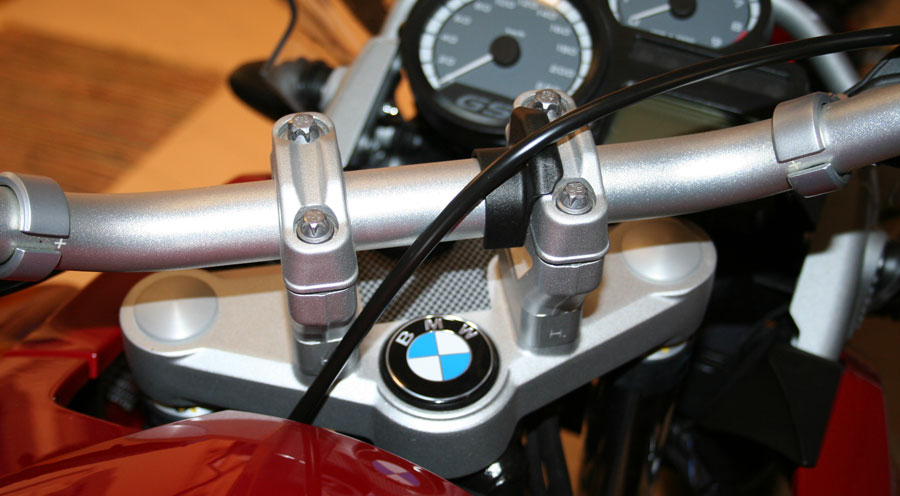

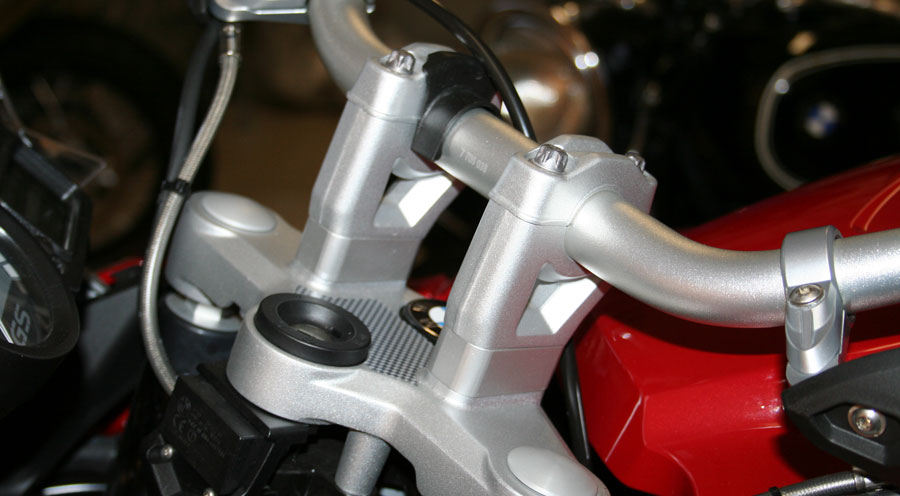

These handlebar risers can offer a great increase in comfort, especially for taller riders. They really make a significant difference when riding off road and standing on the pegs because the rider can stand up straighter. This results in better control and reduced fatigue. There are 20 mm and 40 mm versions of this part, which roughly equates to 3/4 inch and 1-1/2 inch respectively. The 40 mm set consists of double blocks and longer bolts as can be seen in the image below. The shape and finish of the risers complements the existing parts well. The ability to turn the upper portions of the clamps by 180 degrees is retained.
Also referred to as handlebar risers, handlebar height increase, bar back risers, barbacks.

Please note: This part is designed for 2008 and later models.
You need E10 and E12 for the mounting.

BMW R1200GS 2008-2012
BMW R1200GS Adventure 2008-2013
For BMW HP2 Enduro and HP2 Megamoto fits LAR12/08/20


Hornig ABE Logo
This product has a General Operating License for Germany. An additional TÜV approval is not required. This General Operating License is valid in many other countries.

There is a video for this product - watch here!

20mm

Article-No. : LAR12/08/20

Availability: immediately available    Show details
Price: € 48,90
USD: 53,03 $
GBP: 41,87 £
AUD: 80,76 $A

without VAT plus shipping

40mm

Article-No. : LAR12/08/40

Availability: immediately available    Show details
Price: € 66,90
USD: 72,55 $
GBP: 57,29 £
AUD: 110,49 $A

without VAT plus shipping

Questions about this article


Do I have to consider anything special when mounting the handlebar risers on a BMW HP2 model?
The HP2 has a cast-on pin (slightly conical) on the triple clamp.
This pin only serves as a rotation lock.
The hole in the handlebar risers is slightly too small for the cast part (conical pin).
The upper diameter is 6mm, the lower diameter is 6,25mm.
If it is not possible to tap the handlebar risers with a rubber hammer up to its limit onto the conical pin, you should drill out the hole in the handlebar risers to 6,5mm (2mm deep).

Ratings

Rating:
The average rating of this product is 5 of 5:
(after 10 Ratings)
Rating
Timo wrote | 2019-08-15:
Really fast shipment and product quality is perfect !
Rating

Roberta wrote | 2018-03-22:
Very good product. The delivery has been very quick and the packaging was perfect. Thank you
Rating

Daniel C. wrote | 2017-12-29:
Very good product and hight quality!
Rating
