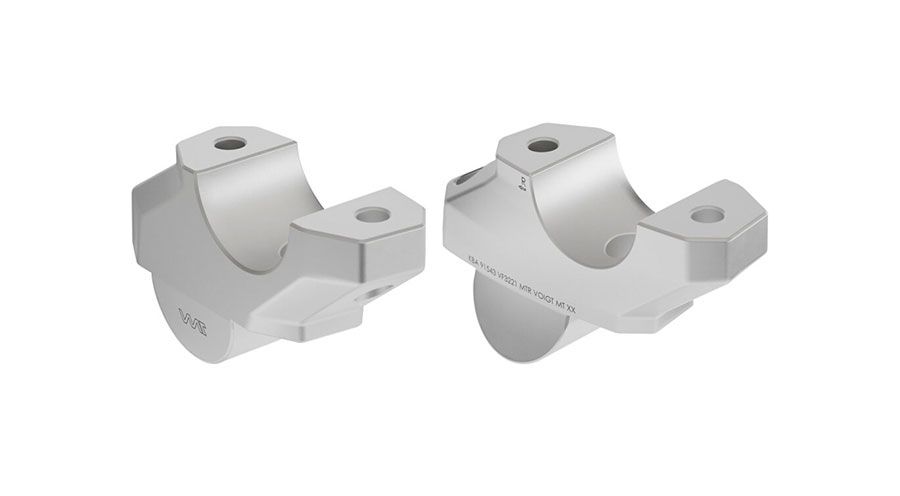

Handlebar risers with offset for BMW R1300R

All Bikes

Handlebar risers with offset: 32mm higher and 21mm closer to the rider

Raising the handlebar by 32mm results in a more upright, much more relaxed seating position. Moreover, the handlebar is brought 21mm closer to the rider which additionally improves driving comfort. The overall result is a noticeable increase in stamina and concentration. Long stretches on the motorway are less nerve-racking.
Fits on original 32mm handlebar.
With EU street homologation!
Also referred to as handlebar risers, handlebar height increase, bar back risers, barbacks.

BMW R1300R

Install Instruction

If the original clutch line is too short or under tension after installing the handlebar risers, you can extend it with our special adapter (part no. 26865), which is sold separately.
Install Instruction Extension Adapter for Clutch Cable
Example video installation instruction for the extension adapter for the clutch cable

If the original brake line is too short or tensioned after mounting the handlebar risers, the brake line can be extended with our special adapter (item no. 26860), which is sold separately.
Install Instruction Extension Adapter for brake line

Handlebar risers 32/21mm

Article-No. : 45602

Availability: on short call Show details

Price: € 109,90
USD: 129,65 $
GBP: 95,80 £
AUD: 180,65 $A
without VAT plus shipping

Adapter for clutch cable

Article-No. : 26865

Availability: immediately available Show details

Price: € 40,20
USD: 47,42 $
GBP: 35,04 £
AUD: 66,08 $A
without VAT plus shipping

Adapter for brake line

Article-No. : 26860

Availability: immediately available Show details

Price: € 40,20
USD: 47,42 $
GBP: 35,04 £
AUD: 66,08 $A
without VAT plus shipping

4 pieces stainless steel Allen screw M8 for replacing the special screws

Article-No. : 2534-518

Availability: on short call Show details

Price: € 11,90
USD: 14,04 $
GBP: 10,37 £
AUD: 19,56 $A
without VAT plus shipping

Questions about this article

Does the Handlebar Risers fit if I have BMW navigation?
Yes, the Original BMW Navigation fits on our Handlebar riser without problems. You can also see this in the install instruction, please have a look at it.

Do I need the additional screws (item 2534-520)?
BMW uses special screws with threads in their extended screw heads on the triple clamp in order to mount the navigation system there. If somebody does not want to mount the navigation system there anylonger, our shorter screws (2534-520) can be used. With these screws you do not have any disturbing screw heads with thread on the triple clamp. An elegant solution if you do not want to mount the support of the BMW GPS system on the triple clamp anylonger. Our short screws (2534-520) are not necessary for mounting the handlebar risers.
